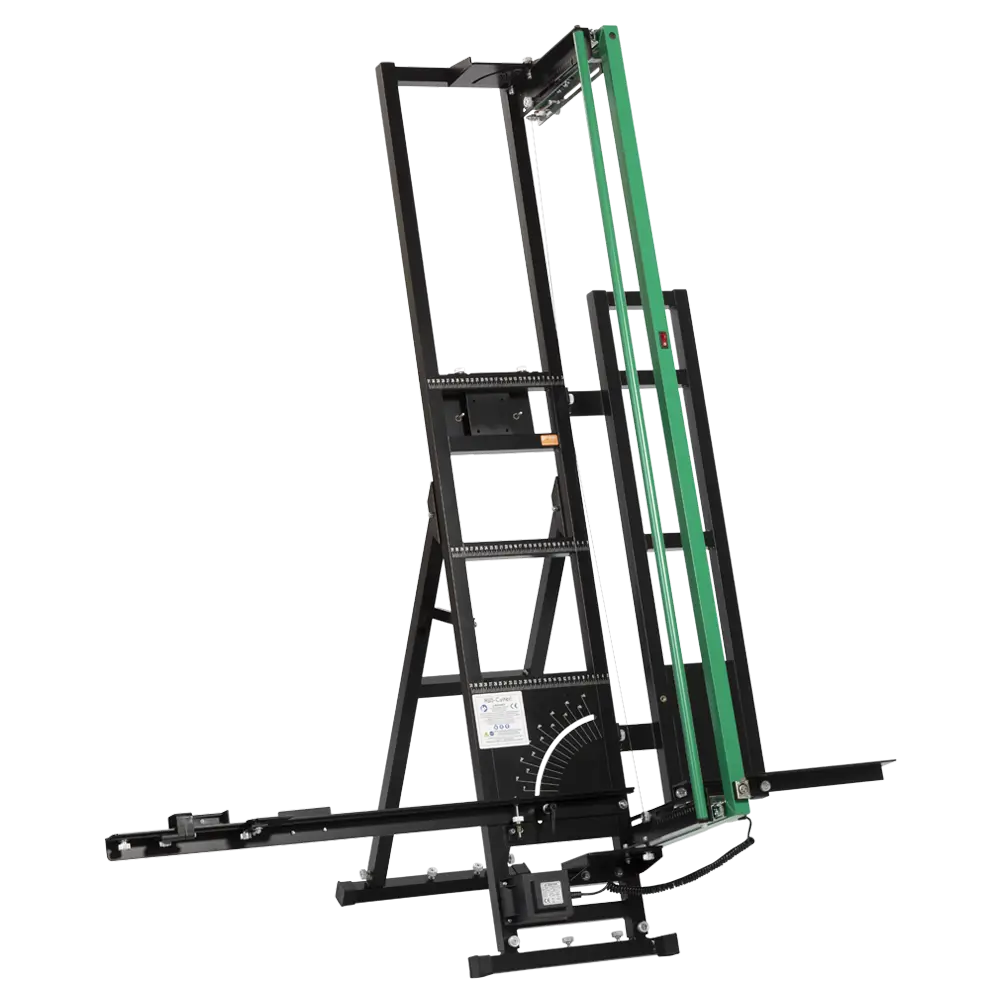

Hot wire cutter HWS-Cutter PRO!
Hot wire cutter HWS-Cutter PRO!
Professional Mastery
The HWS-Cutter PRO! is a hot wire cutter based on the proven HWS-Cutter! design, offering enhanced stability and additional features for improved cutting efficiency, precision, and professional mastery. Its reinforced construction and upgraded components provide more reliable performance, especially in demanding on-site conditions.
DUST-FREE CUTTING SOLUTION
One of the key advantages of using the hot wire cutter HWS-Cutter PRO! is its cleanliness and precision. When polystyrene (EPS) is cut mechanically with traditional tools such as saws, knives, or blades, a large amount of waste, small pieces, and foam debris is produced. Due to their very light weight, these particles spread easily and contaminate both the workplace and the entire construction site. Cleaning and collecting this fine “white debris” takes a significant amount of time.
With the HWS-Cutter PRO! the material is cut by thermal melting, sealing the edges of the polystyrene as it is cut. This method produces no loose pieces or fine debris at all. Simply make a clean cut, take the foam piece, and put it straight to use.
- Clean!
- Precise!
- Fast!
- Professional!
- Clean!
- Precise!
- Fast!
- Professional!
PROFESSIONAL FOAM CUTTER: HWS-CUTTER!
Indispensable Hot wire foam cutter for craftsman
The HWS-Cutter! hot wire foam cutter combines lightweight construction with exceptional stability and corrosion resistance. It is designed for standing operation, featuring foldable legs and a vertically positioned cutting wire. The legs are securely attached to the frame and can be folded, allowing for quick and easy setup on construction sites or in workshops.
The frame is made of welded aluminum profiles, ensuring durability and rigidity, and is finished in black for a professional appearance. Its practical and lightweight design makes it easy to transport to elevated work areas or mount directly onto scaffolding using the integrated scaffold bracket.
When working with large polystyrene (EPS/XPS) panels, the built-in side support prevents accidental sliding or falling of cut sections. The side support is included in the standard model and is securely attached to the main frame with two screws.
TELESCOPIC SUPPORT LEGS
The HWS-Cutter PRO! is equipped as standard with telescopic support legs, providing enhanced stability and greater flexibility during operation. The legs expand the cutter’s support base, ensuring a more secure position on the working surface. They also allow the working height to be increased and the cutter to be tilted to adjust its operating angle, making it easier to adapt the cutter to different working conditions and tasks.
LIMIT STOP SLIDERS
A small but important detail: the HWS-Cutter PRO! hot wire cutter is equipped with limit stop sliders that lock the cutting bow at a fixed height for precise longitudinal cuts.
For example, a 250 mm polystyrene board can be split into two 125 mm sections without any additional measuring.
ADJUSTABLE WIRE ANGLE
The HWS-Cutter PRO! is equipped with additional wire mounting points that allow the cutting wire angle to be adjusted by up to 12%. This feature makes it possible to set different distances between the upper and lower wire attachment points, enabling precise tapered cuts. For example, the upper distance can be set to 170 mm and the lower distance to 110 mm, allowing a 200 mm thick polystyrene board to be cut with different thicknesses along its height
POWER SUPPLY
The powerful transformer is easily mounted on the device using just four screws. After connecting the transformer to the bow via XLR 3-pin connectors, the HWS-Cutter PRO! hot wire cutter is ready for operation immediately.
Unlike many similar solutions on the market, the transformer is fully integrated into the cutter and securely mounted on the frame. There is no need to carry a separate power unit or reconnect the power supply each time. Everything is built into the system, ensuring convenience, safety, and fast setup on every job site.
The transformer features IP68 protection, ensuring reliable use in demanding working environments.
EXTENDED SUPPORT PLATFORM
Compared with the standard HWS-Cutter!, the HWS-Cutter PRO! features an extended support platform with increased height. The larger support area provides improved stability when working with large polystyrene (EPS/XPS) boards, helping to keep the material securely positioned during cutting. It also offers more comfortable handling and better support for larger workpieces, making demanding cutting tasks easier and more controlled.
SCAFFOLD MOUNTING
The HWS-Cutter PRO! hot wire cutter can also be easily and quickly mounted on building scaffolding using the special scaffold bracket (included in the basic kit).
All you need to do on the scaffold: hang the device, tighten the screws, and it’s ready for work.
The scaffold bracket is fully removable and can be easily detached whenever needed, allowing quick conversion back to standard operation.
CUTTING WIRE
We use copper-coated nichrome (NiCr) wire. Ready-made cutting wires are supplied with lugs on both ends for easy and quick installation on the hot wire cutter. The wires are available individually (1 pc) or in bulk packs (1 kit = 10 pcs).
TECHNICAL SPECIFICATION
CUTTING LENGTH
up to 1300mm.
CUTTING DEPTH
up to 330mm.
POWER SUPPLY
230VAC/50Hz or 110VAC/60Hz.
TRANSFORMER
200VA / 5A / 40VAC.
HEATING CONTROL
switch button and push-button.
MAIN BOARD (BODY)
robust welded aluminum frame.
CUTTING FRAME
painted aluminum profile.
CUTTING WIRE
NiCr / dia 0,55mm / copper coated.
WIRE LENGTH
ca. 1490mm.
WIRE TENSIONING
springs.
CARTON SIZE
181x43x19cm.
WEIGHT
21kg.
ASSEMBLY TIME
aprrox. 12 minutes.
