Multi-wire! Series

Productive & Efficient!

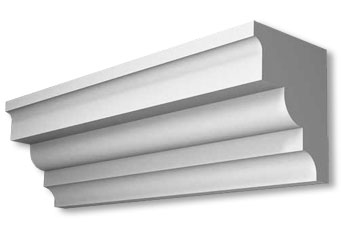

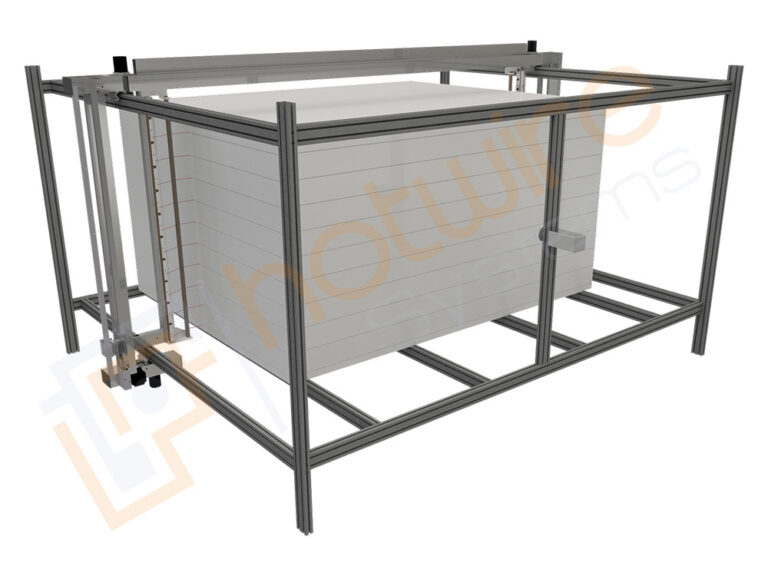

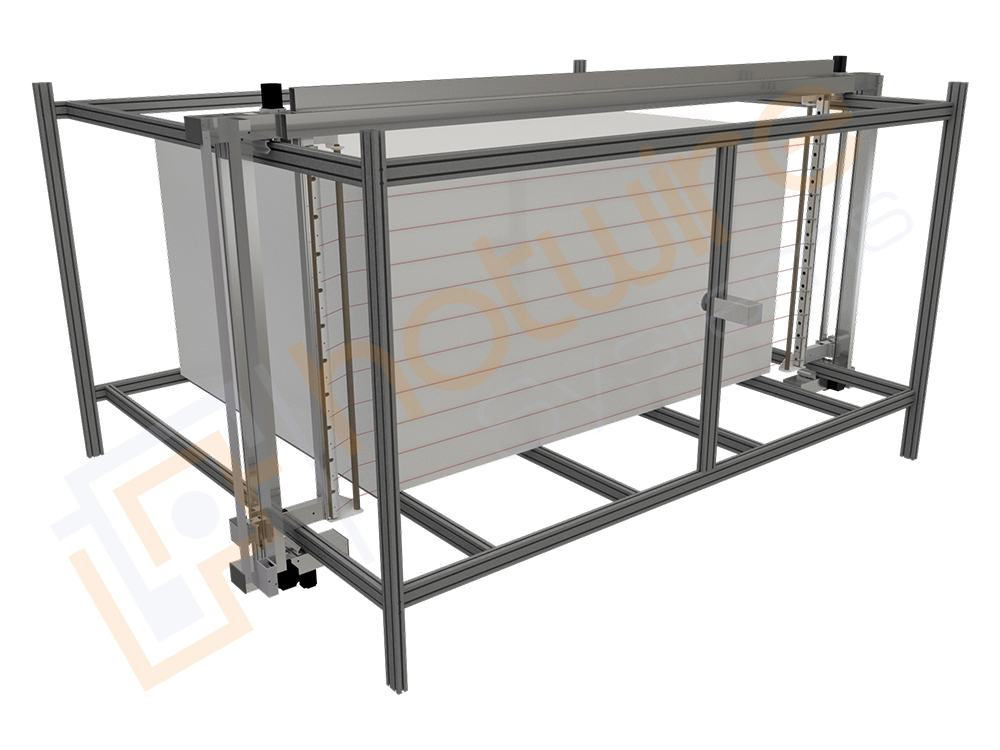

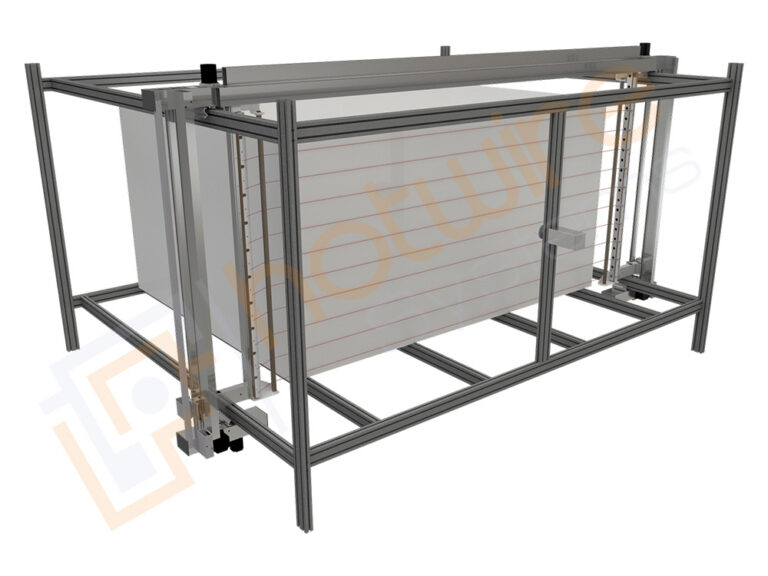

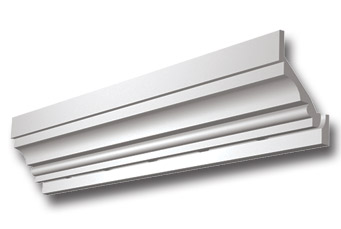

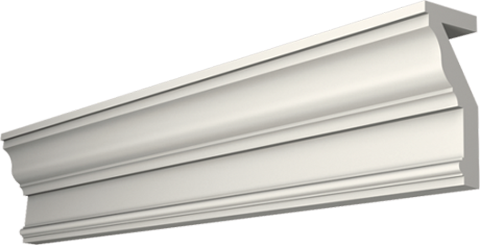

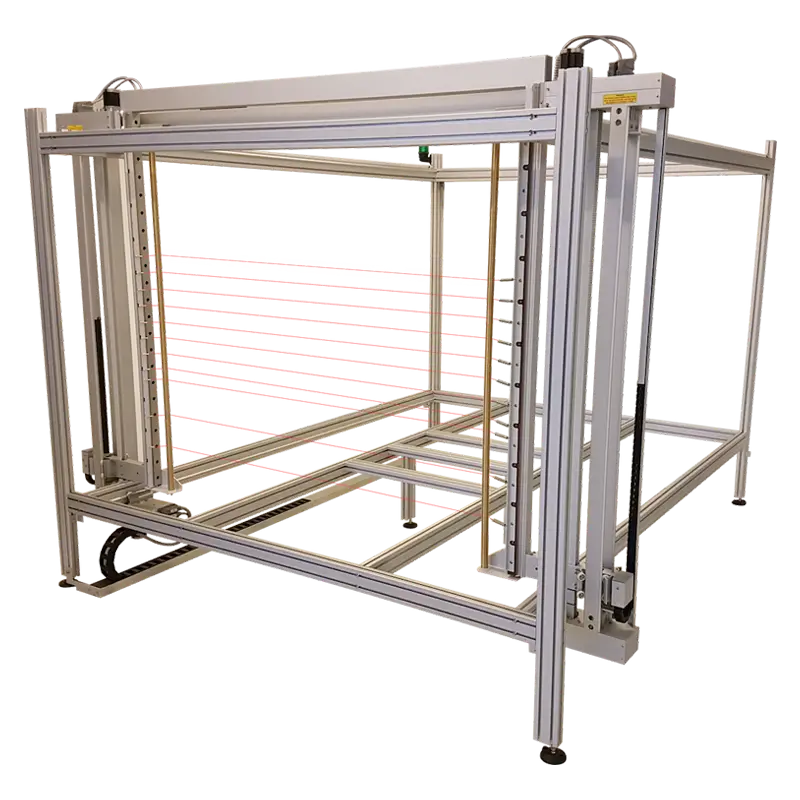

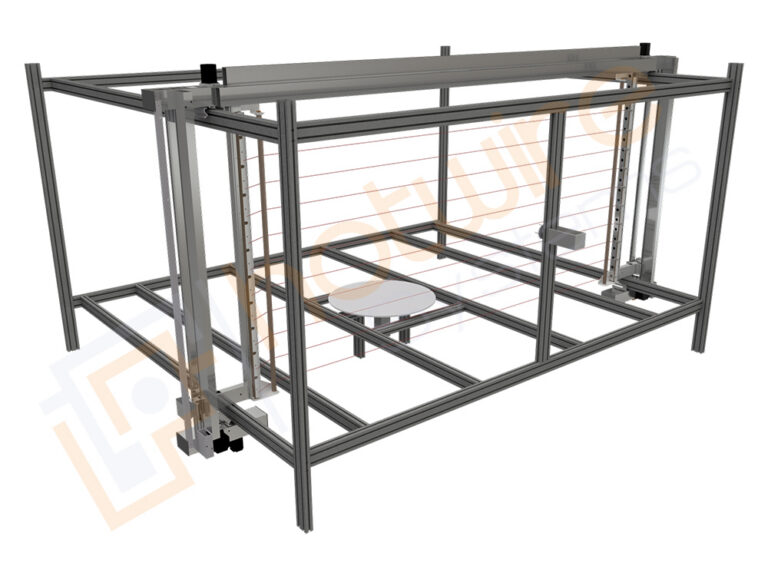

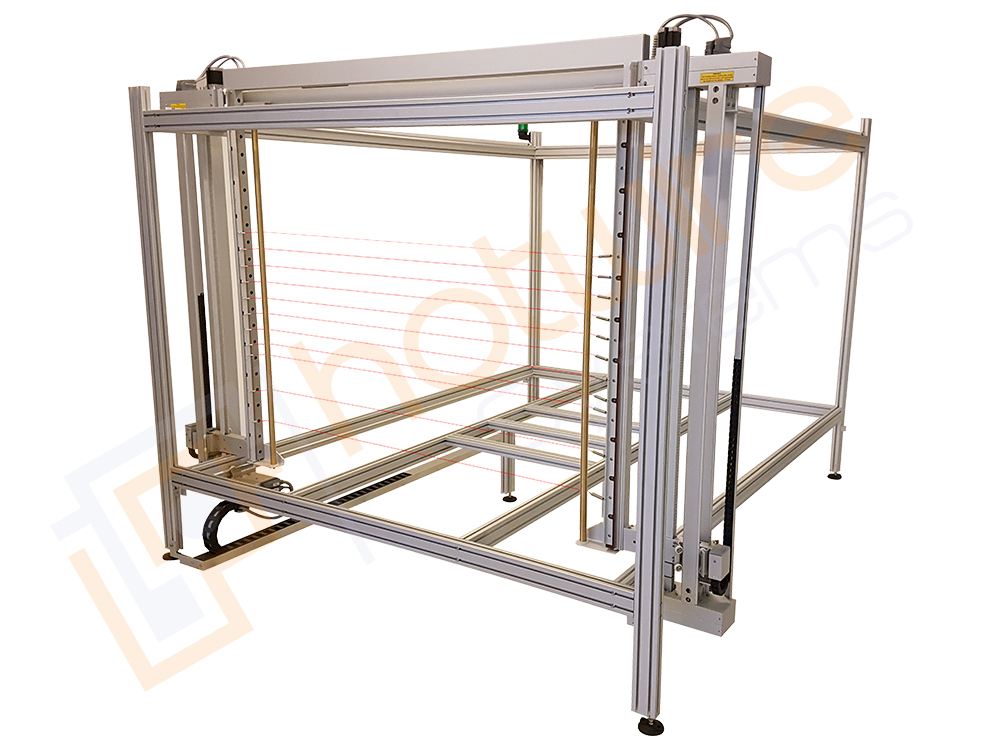

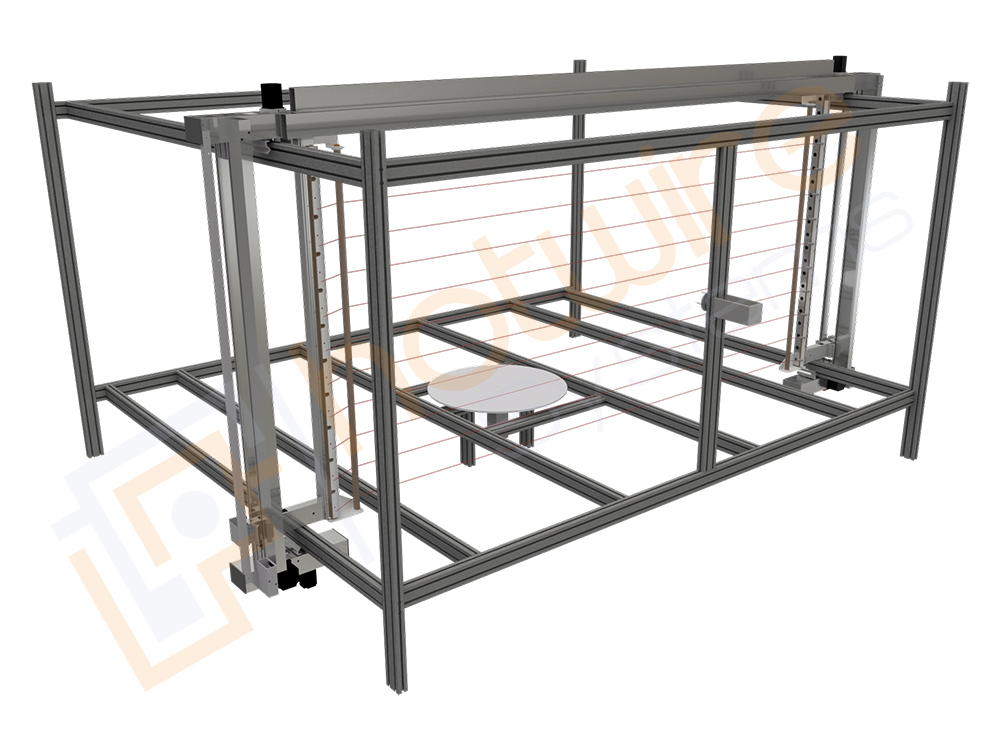

Hot wire CNC foam cutting machine MW-Series PRO! are recommended for those who planning to start a mass production of architectural and decoration elements. 10 wires cutting identical shapes simultaneously significantly reduce the time required to produce large quantities of identical shapes. The maximum number of cutting wires is 10, but depending on the project the operator may choose to use 1, 3, 6, etc.

CNC

Computer Numerical Control

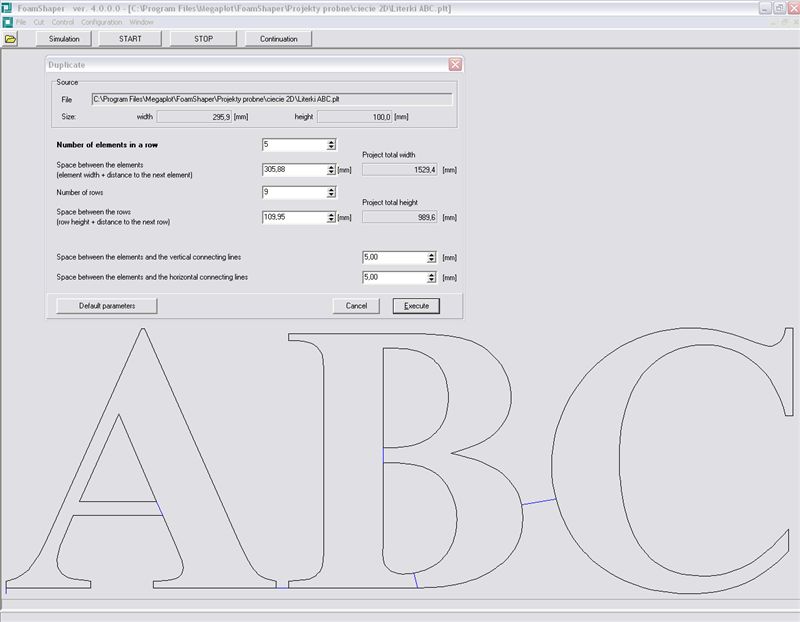

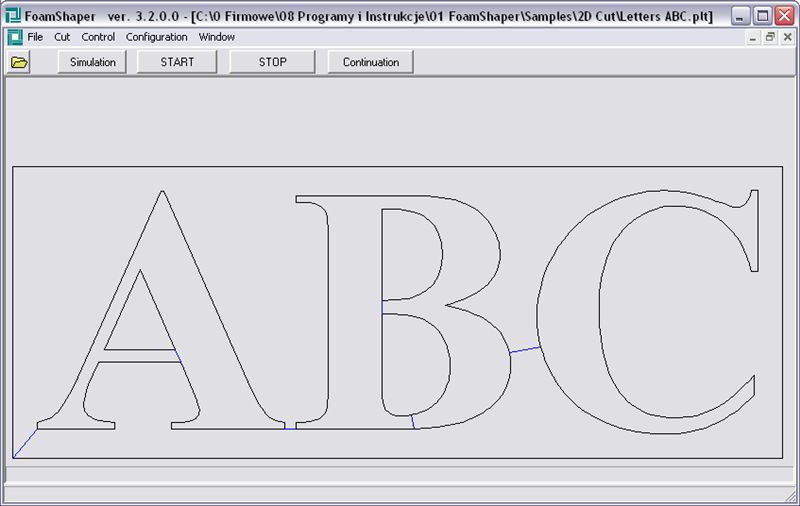

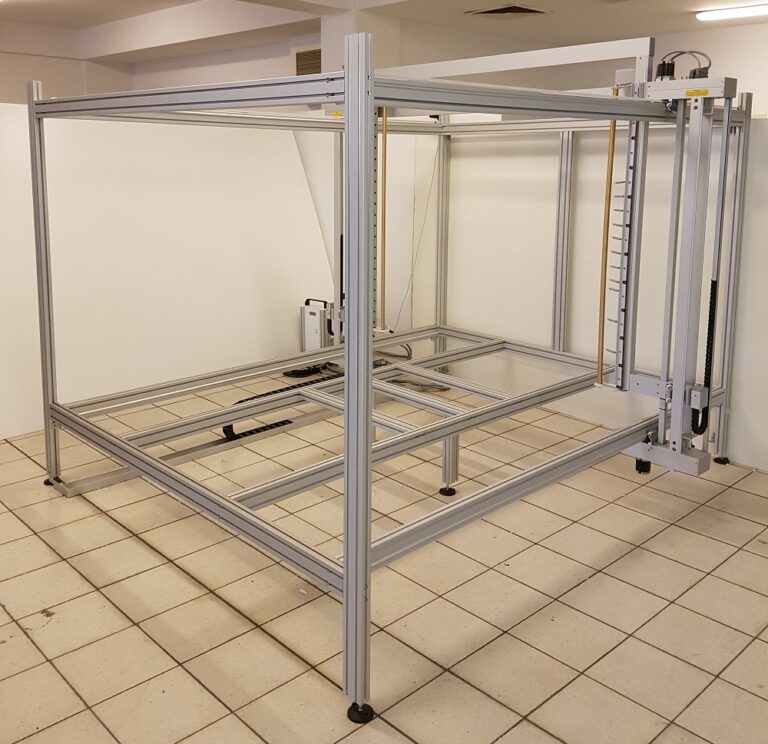

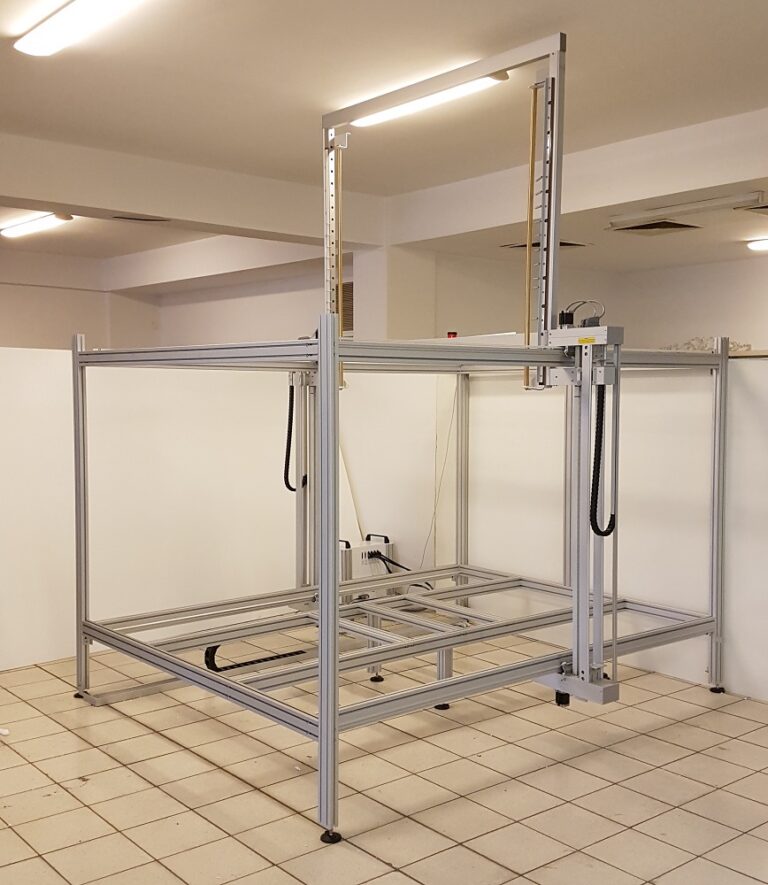

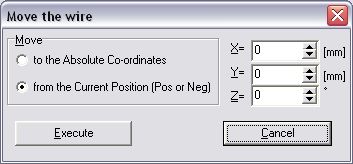

The hot wire CNC foam cutter is a machine controlled by a PC computer, capable of cutting any different shapes/objects out of polystyrene foam (EPS and XPS). The cutting is performed with a hot cutting wire moving in the vertical and horizontal axes through the use of stepper motors controlled by an electronic controller connected to a PC via USB and operated with our control software. This ensures flawless precision, high processing speed, and consistently excellent quality.

The precise mechanisms and perfect electronic control of motors movement enable the operator to cut any shape, as long as its thickness corresponds with the material thickness. There is also the option of designing and cutting a few different outlines of the same project, resulting in very attractive 3D shapes. The TurnTable makes it possible to cut, e.g., spheres, the Lathe is indispensable for column cutting, and further possibilities come with the ShapeWire Tool.

AVAILABLE MODELS

The standard product range includes 12 basic models of hot wire CNC machines of MW-Seires PRO! and designed to accommodate standard blocks of cutting material. The narrower hot wire CNC foam cutting unit, MW1300 Small, is capable of cutting a standard block along its shorter side, as both the cutting wire length and machine width are 1300 mm. In contrast, the wider MW3000 Large model allows cutting along the long side of the block, featuring a cutting wire length and machine width of 3000 mm.

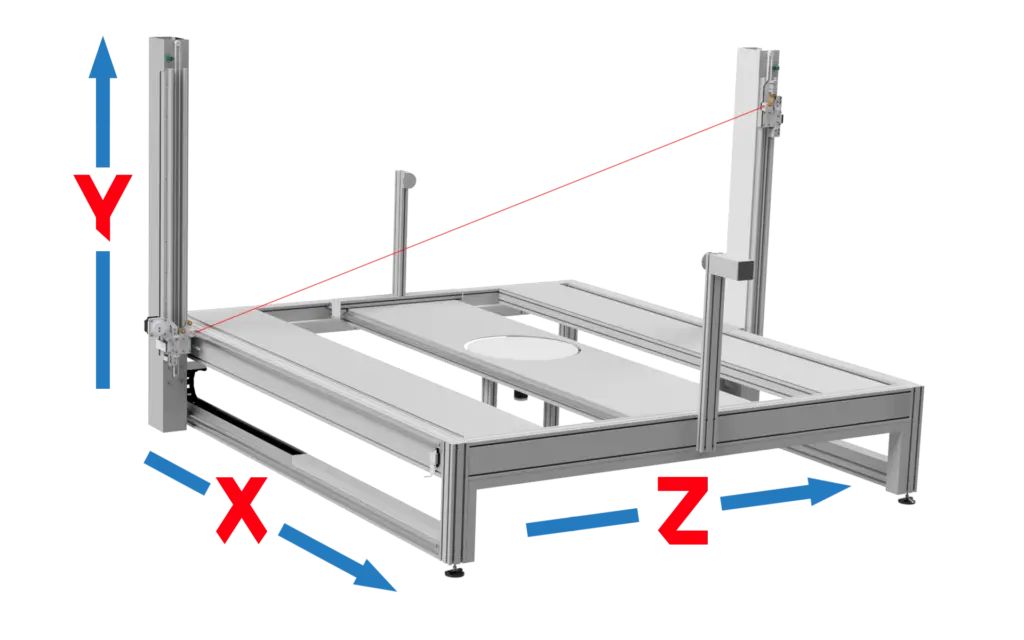

KEY STANDARD MACHINE DIMENSIONS EXPLAINED

Machine Width=Cutting wire length (Z-axis).

The machine width corresponds to the cutting wire length and defines the maximum length of shapes or profiles that can be cut.

Machine Length (X-axis).

This dimension determines the maximum cutting length along the machine.

Machine Height (Y-axis).

The machine height defines the maximum height of the material block that can be processed. On standard machines, this value typically ranges from 1220 to 1300 mm, allowing for full-size EPS blocks.

	X=130cm \| SMALL	X=240cm \| MEDIUM	X=305cm \| LARGE
Z=130cm \| MW1300	MW1300 Small	MW1300 Medium	MW 1300 Large
Z=150cm \| MW1500	MW1500 Small	MW1500 Medium	MW1500 Large
Z=250cm \| MW2500	MW2500 Small	MW2500 Medium	MW2500 Large
Z=300cm \| MW3000	MW3000 Small	MW3000 Medium	MW3000 Large

MODEL	TABLE SIZE
MW1300 Small	1300x1300mm
MW1300 Medium	1300x2400mm
MW1300 Large	1300x3050mm
MW1500 Small	1500x1300mm
MW1500 Medium	1500x2400mm
MW1500 Large	1500x3050mm
MW2500 Small	2500x1300mm
MW2500 Medium	2500x2400mm
MW2500 Large	2500x3050mm
MW3000 Small	3000x1300mm
MW3000 Medium	3000x2400mm
MW3000 Large	3000x3050mm

OPTIONAL ACCESSORIES

TurnTable

Lathe Bar

TitaniumAlloy wire

ShapeWire Tool

TURNKEY PACKAGE INCLUDES:

Hot wire CNC cutter MW-Series PRO!
Electronic controller based on ARM architecture with USB support
Control software with unlimited free updates
A 100-gram spool of TitaniumWire
Remote controller/handheld
Assembly and operational manuals
After sales service/Year-round tech support
60-month warranty
Free delivery within the EU
Everything you need to start working after assembly
Made in EU (European quality, CE certification)

TECHNICAL SPECIFICATION

WORKING WIDTH = WIRE LENGTH

130 cm. / 150 cm. / 250 cm. / 250 cm.

WORKING LENGTH

130 cm. / 240 cm. / 305 cm.

WORKING HEIGHT

122 cm.

MAX. TRANSIT SPEED

200 cm/min.

CUTTING WIRE

1-10 wires (up to 20 in custom HD variants)

CUTTING WIRE DIAMETER

TitaniumWire 0.25-0.60 mm (by machine width)

WIRE TENSIONING

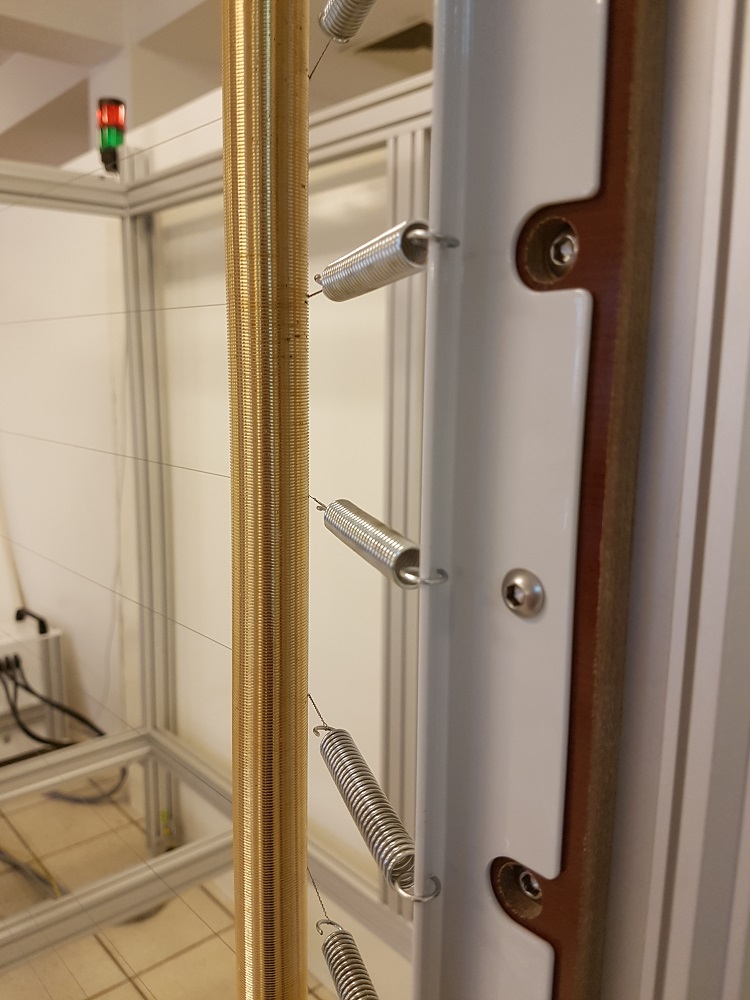

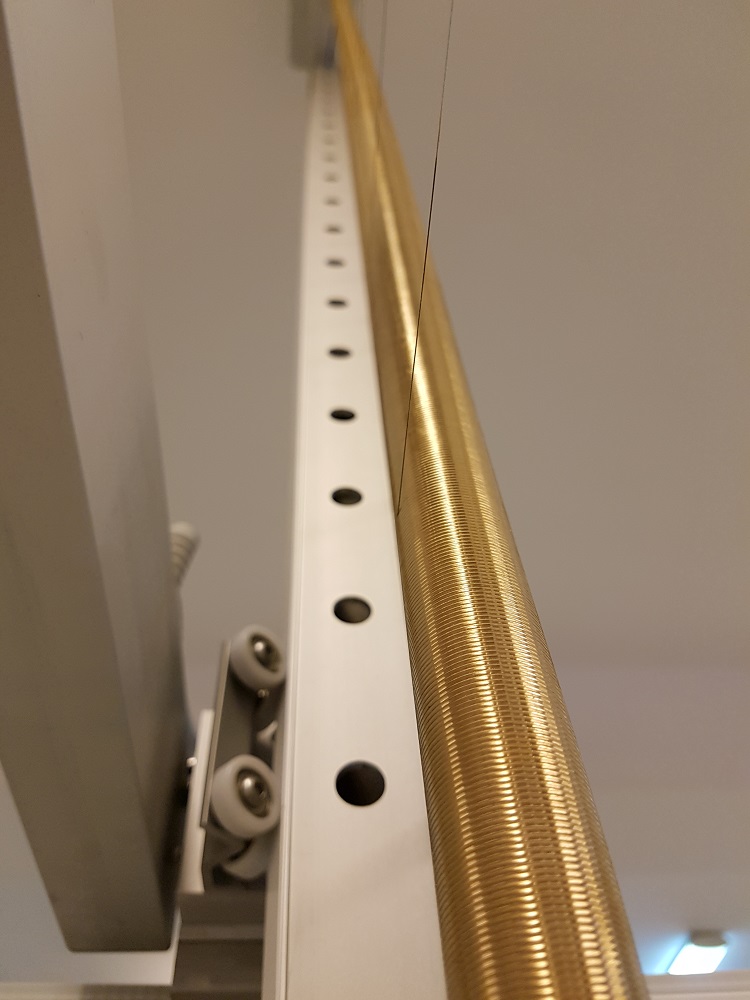

springs/ threaded rod / pneumatic tensioners

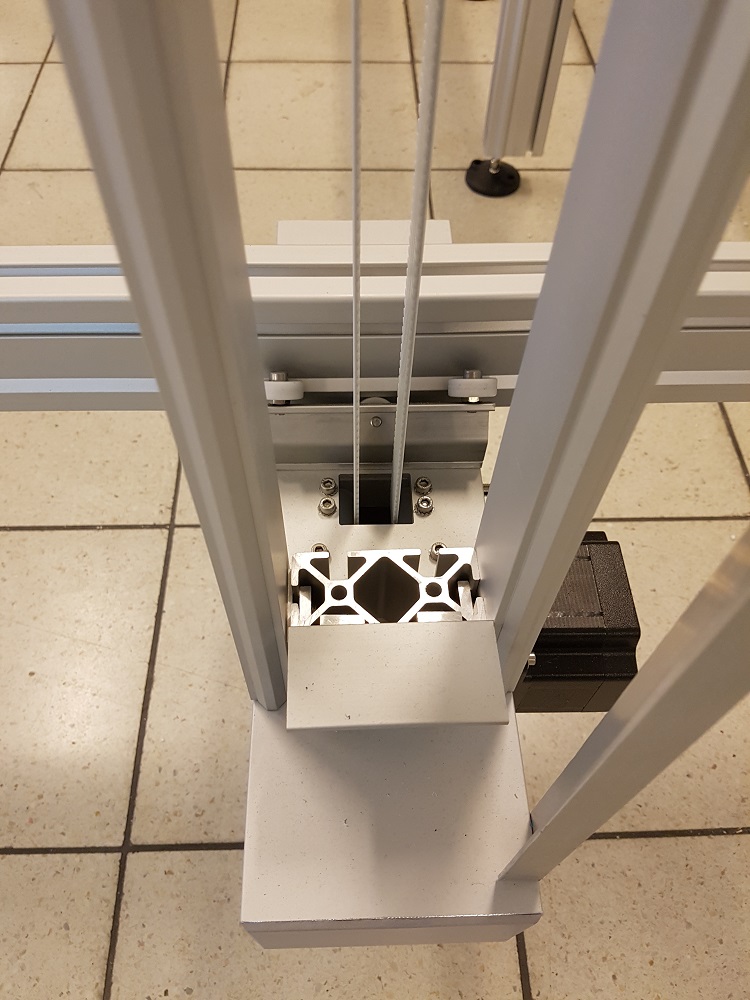

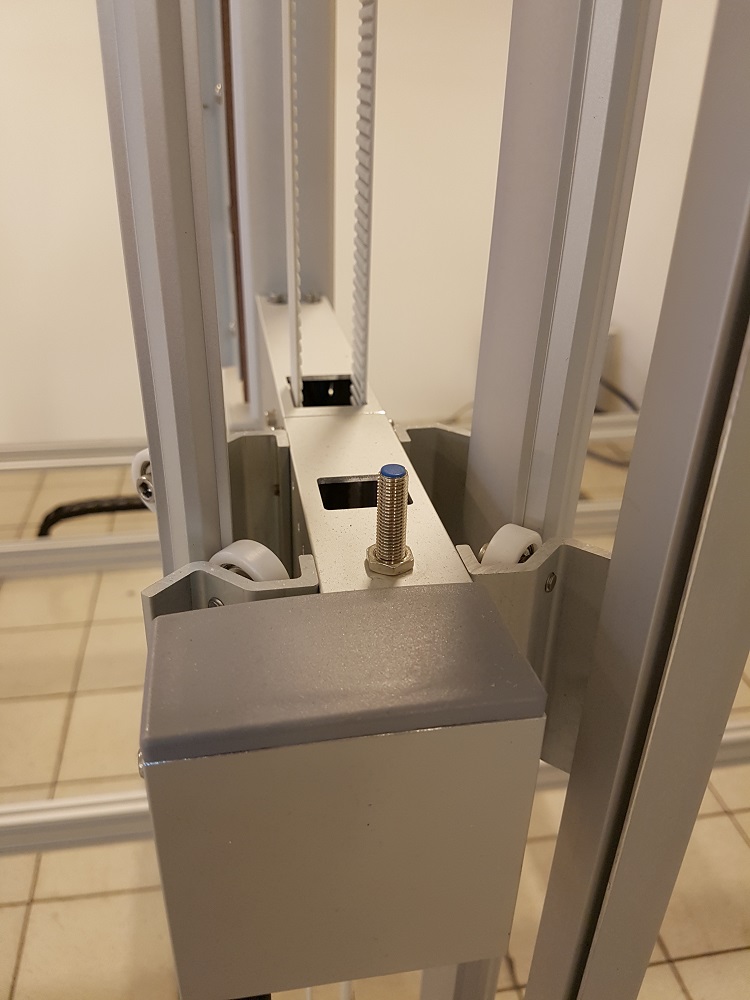

X & Y DRIVES

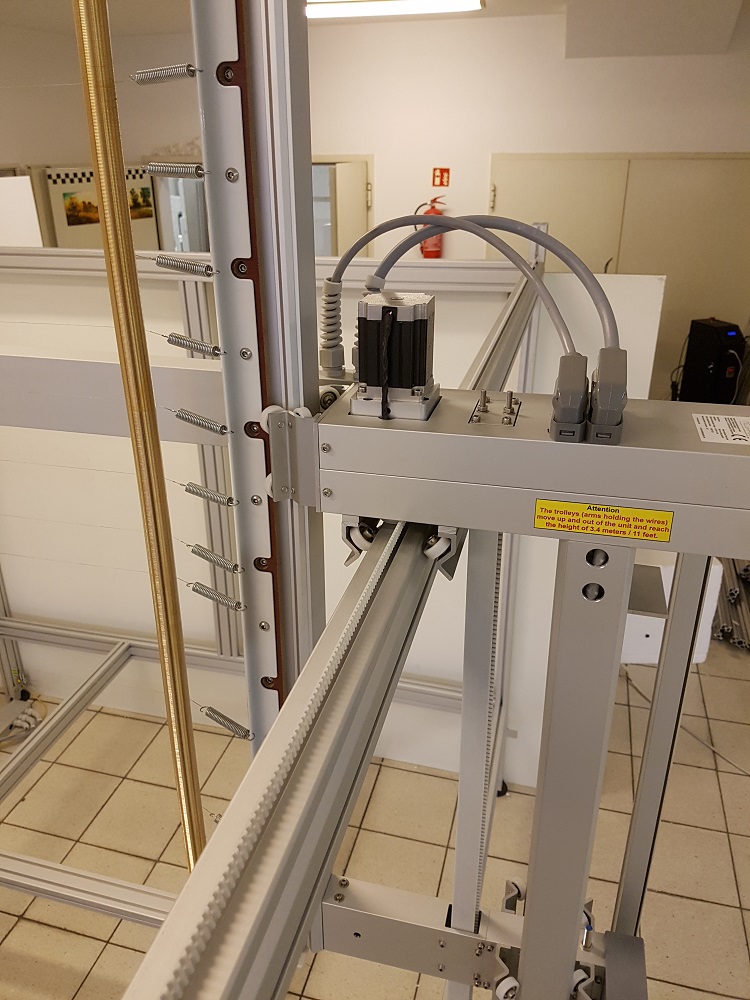

stepper motors, 25AT5 and 10T5 cog belts

SOFTWARE RESOLUTION

0.001 mm.

POWER REQUIREMENTS

230VAC, 50Hz, up to 4KW (10 wires on MW3000)

PC REQUIREMENTS

Windows XP, Vista, 7, 8, 10 and 11.

ACCESSIBILITY

full access from all sides.

SOFTWARE

control software, support for: plt, dxf, EPS/AI.

WARRANTY

60-Month.

FULL 5-YEAR WARRANTY

The warranty covers all electronic and mechanical parts as well as software.
The only thing it does not cover is the cutting wire (but the 0.1 kg spool you receive with the machine is likely to last longer than the warranty).
All replacement parts are provided on EXW (ex-works) basis.
Most replacement parts are shipped to customers on the very same day they are requested.
