Hot wire CNC Foam machine software-controlled, fully-computerized ShapeWire Tool is an optional device available for most our Hot wire CNC foam cutters. When used along with the TurnTable or the Lathe, the ShapeWire Tool enables the operator to cut all kinds or grooved, chiseled, hollow and symmetrical shapes. It uses special 1 mm thick bendable resistant cutting wire which is pre-shaped by the operator and then mounted on a special bar (tool), either horizontally or vertically. The fact that the material is simultaneously being rotated by the Lathe or the TurnTable means there is an almost unlimited number of shapes you can achieve.
Cutting length: | 1340 mm |
Cutting depth: | max. 310 mm |
Transformer 230v: | Pri: 230-volt/ Sec: 40V/200VA |
Transformer 110v: | Pri: 110-volt/ Sec: 40V/200VA |
Weight: | 14,8 kg |
Support plate: | Laminated wood glued together |
Bow: | Painted aluminum profile with ball-bearing supported guide |
Art. #: | HWS-10355 |
Extra Wire: | HWS-10404 |
Scaffold bracket: | HWS-10365 |
Stand base: | HWS-10513 |
Status: | In Stock |
Multifunctional cutters ensures diverse cuts and a wide range of applications across industries.
We ship Foam Cutters and Hot Wire CNC foam cutting machines Worldwide, fast and secure!
Tested in the field by pros and crews across industries — proven reliable every single time.

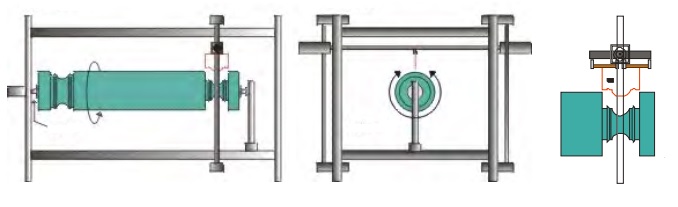

The polystyrene (Styrofoam, EPS, XPS) material is mounted on the TurnTable (can be placed horizontally on the Lathe as well) and the ShapeWire Cutting Mode is selected in Hot wire CNC foam machine software. Once you click “Start”, the pre-bent ShapeWire enters the material, the material makes a 360-degree rotation, the ShapeWire exits the material and in approximately 30 seconds you are done.

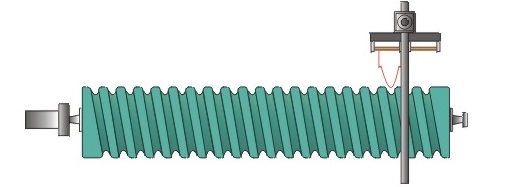

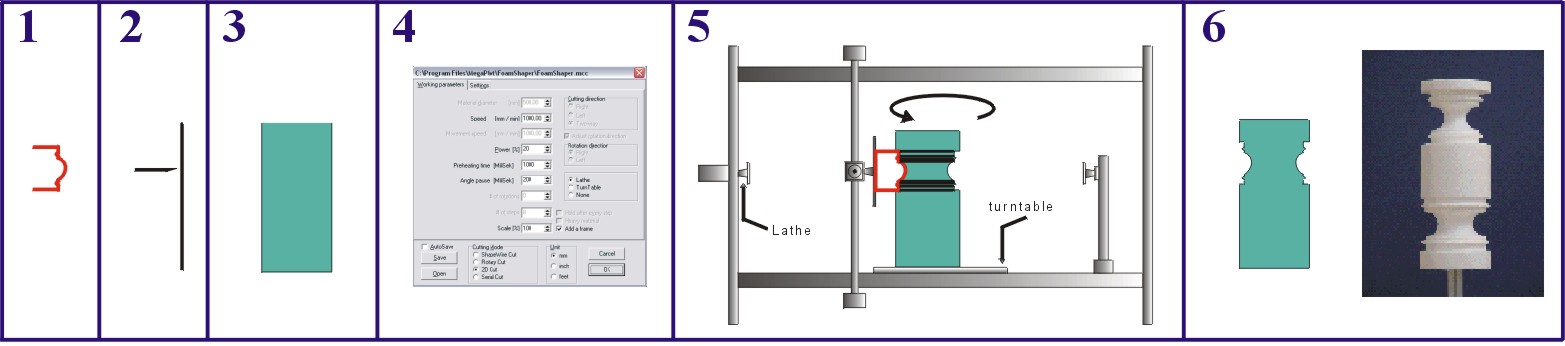

A similar process in which a pre-bent wire is used to cut grooves or flutes in a piece of polystyrene EPS, XPS foam. Spiral or thread cuts are done in the very same way. All the operator has to do is to prepare a single drawing consisting of a revolution axis and the ShapeWire travel path (often a single line) and to enter the required rotation (if any).
Cutting length: |
1340 mm |
Cutting depth: |
max. 310 mm |
Transformer 230v: |
Pri: 230-volt/ Sec: 40V/200VA |
Transformer 110v: |
Pri: 110-volt/ Sec: 40V/200VA |
Weight: |
14,8 kg |
Support plate: |
Laminated wood glued together |
Bow: |
Painted aluminum profile with ball-bearing supported guide |
Art. #: |
HWS-10355 |
Extra Wire: |
HWS-10404 |
Scaffold bracket: |
HWS-10365 |
Stand base: |
HWS-10513 |
Status: |
In Stock |
Cutting length: | 1340 mm |
Cutting depth: | max. 310 mm |
Transformer 230v: | Pri: 230-volt/ Sec: 40V/200VA |
Transformer 110v: | Pri: 110-volt/ Sec: 40V/200VA |
Weight: | 14,8 kg |
Support plate: | Laminated wood glued together |
Bow: | Painted aluminum profile with ball-bearing supported guide |
Art. #: | HWS-10355 |
Extra Wire: | HWS-10404 |
Scaffold bracket: | HWS-10365 |
Stand base: | HWS-10513 |
Status: | In Stock |
