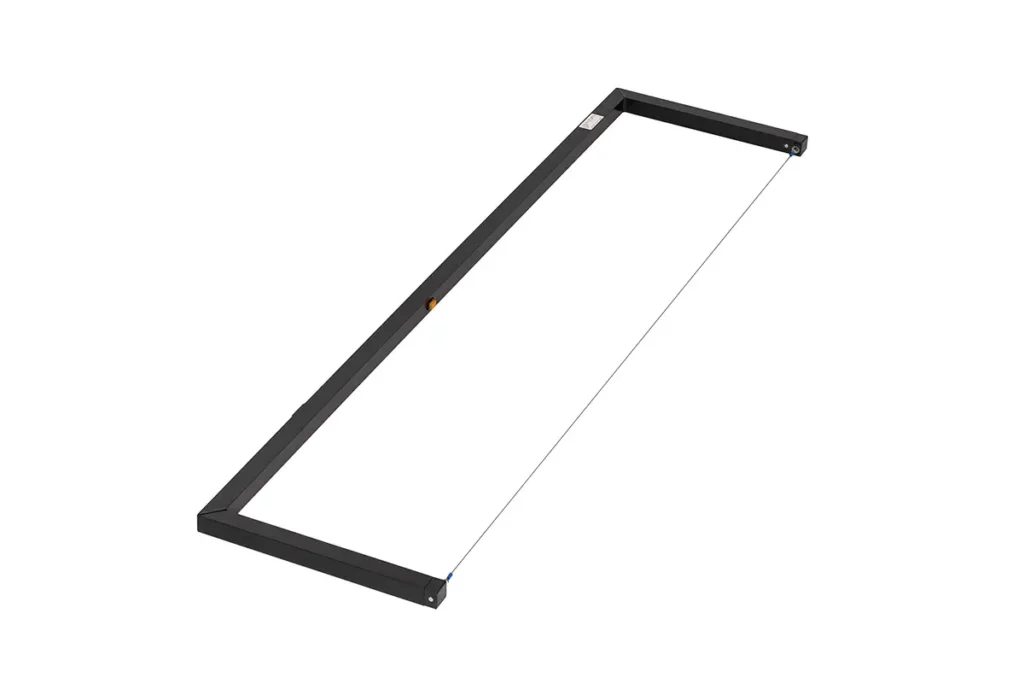

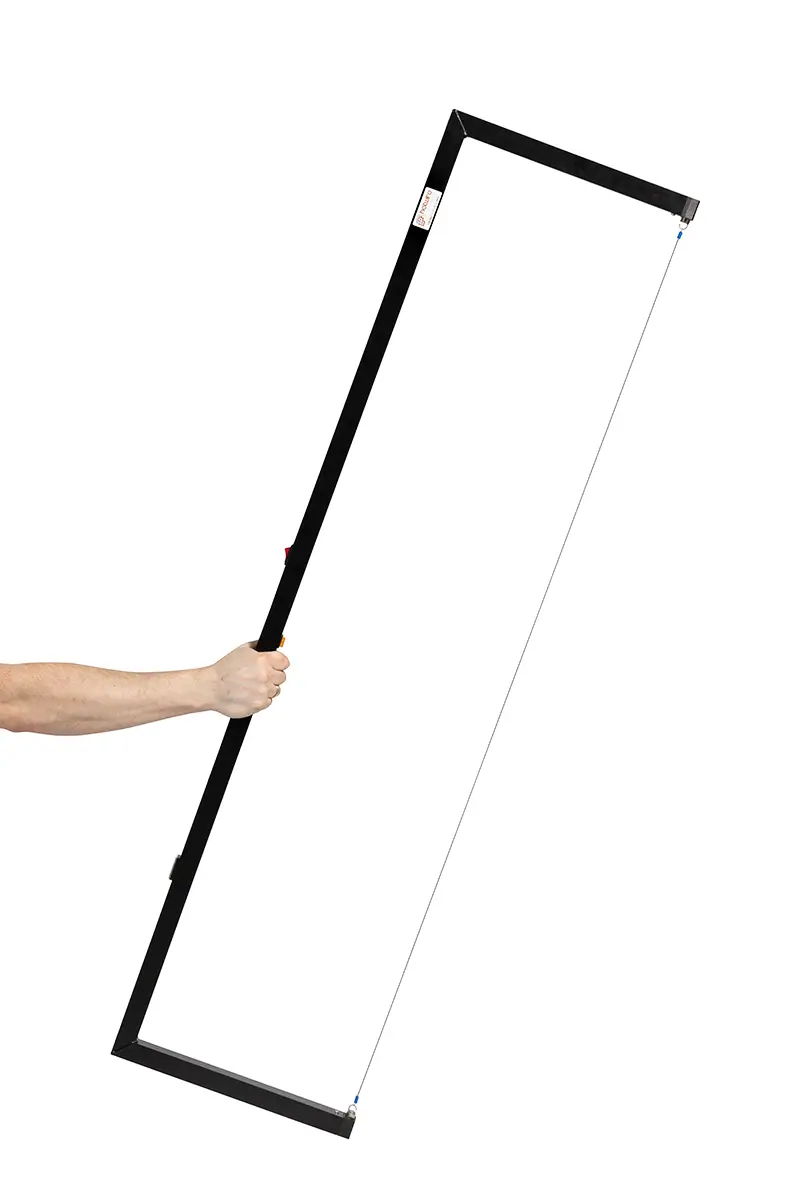

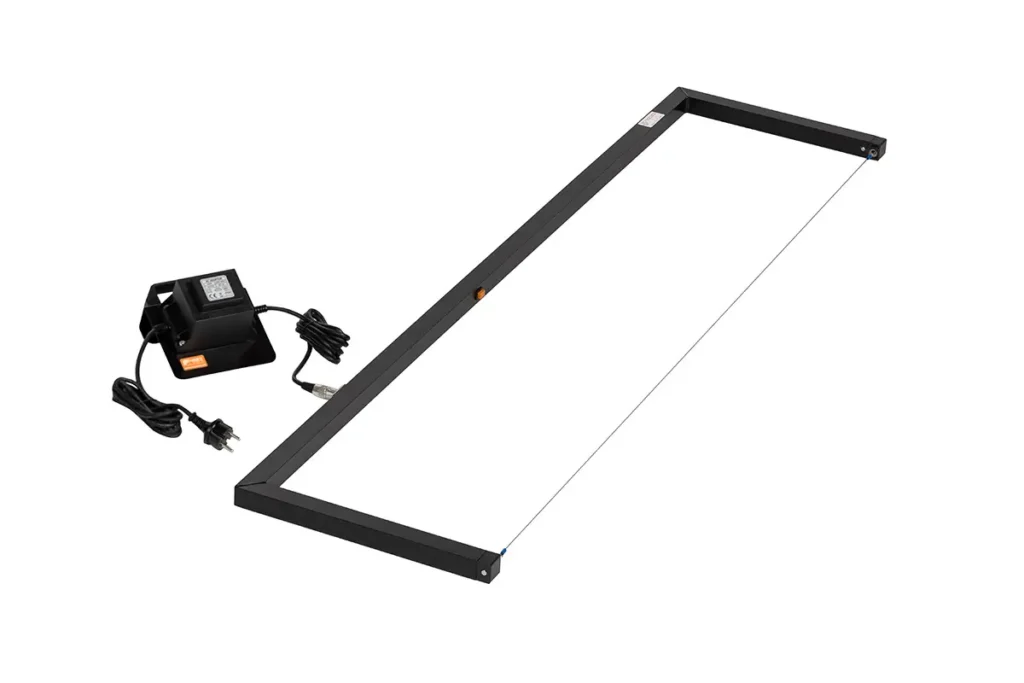

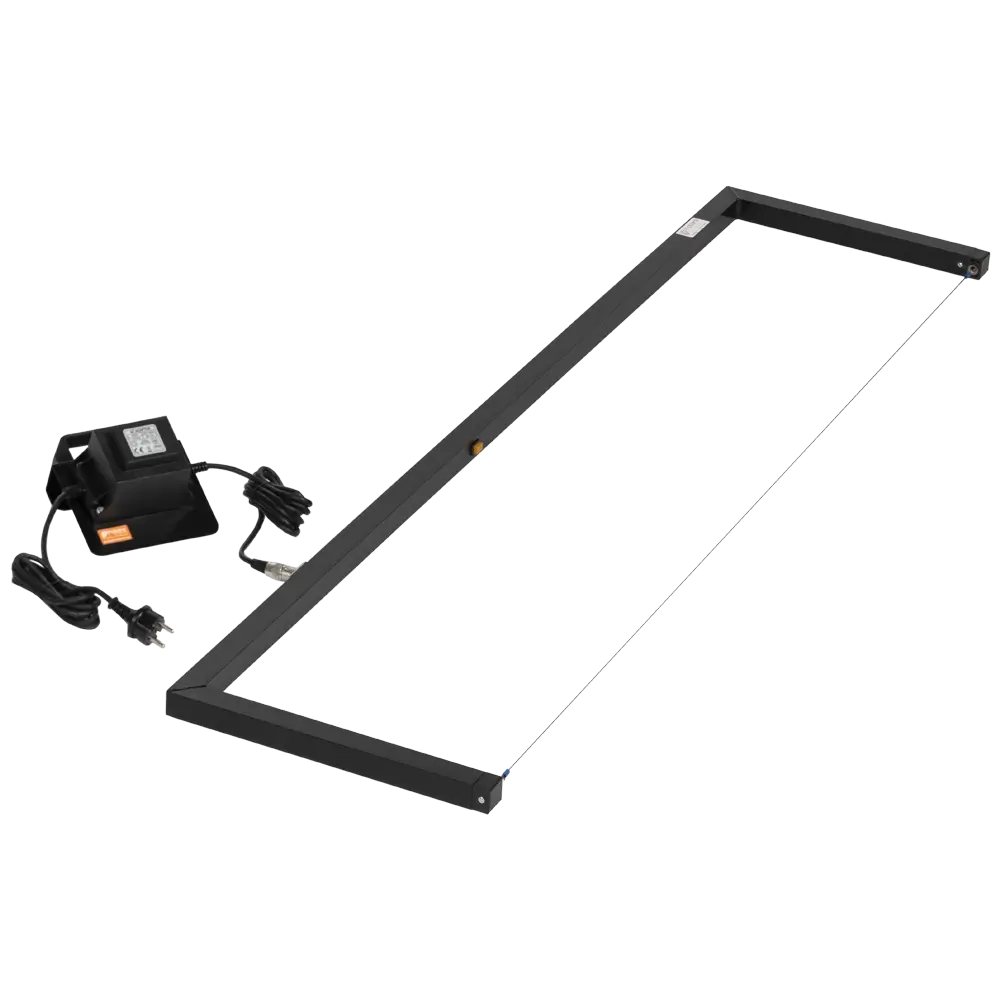

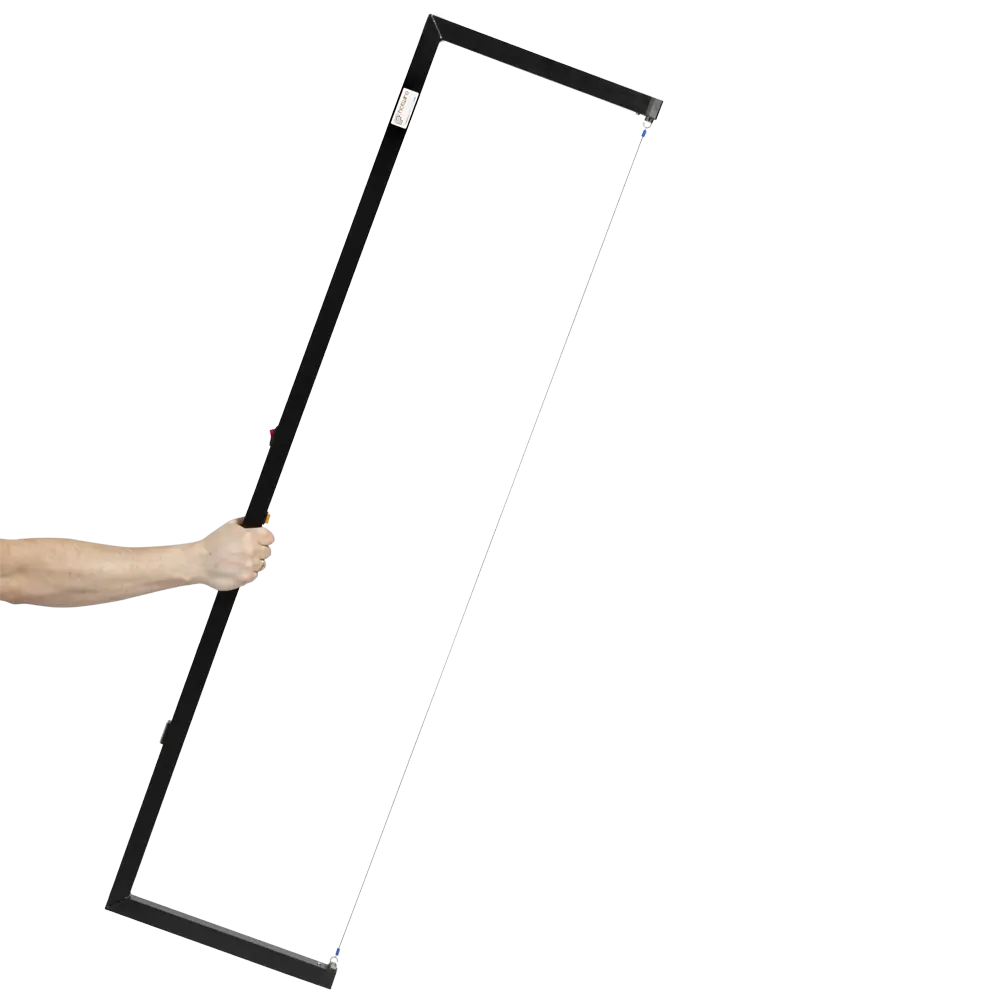

The foam cutter HandCutter-HWS – is a small hand device for cutting Polystyrene foams (EPS, XPS) or similar materials. Advantages of HandCutter-HWS foam cutter is diverse cutting range, robust and maintenance free. With its small size and minimal weight, cutter is made from aluminium profile connected with angles, handheld Polystyrene Foam Cutter HWS can be quickly utilised anywhere.
Model: | HWS 1000 | HWS 1300 |
Cutting length: | 1040 mm | 1340 mm |
Cutting depth: | 310 mm | 310 mm |
Weight: | 2 kg | 2 kg |
Adaptor 230-volt: | 230V/36V/160VA | 230V/40V/200VA |
Adaptor 110-volt: | 110V/36V/160VA | 110V/40V/200VA |
Bow: | Painted, welded aluminum profile | |
Art. #: | HWS-10347 | HWS-10348 |
Extra wire: | HWS-10401 | HWS-10402 |
Status: | In Stock | In Stock |
Multifunctional cutters ensures diverse cuts and a wide range of applications across industries.
We ship Foam Cutters and Hot Wire CNC foam cutting machines Worldwide, fast and secure!
Tested in the field by pros and crews across industries — proven reliable every single time.

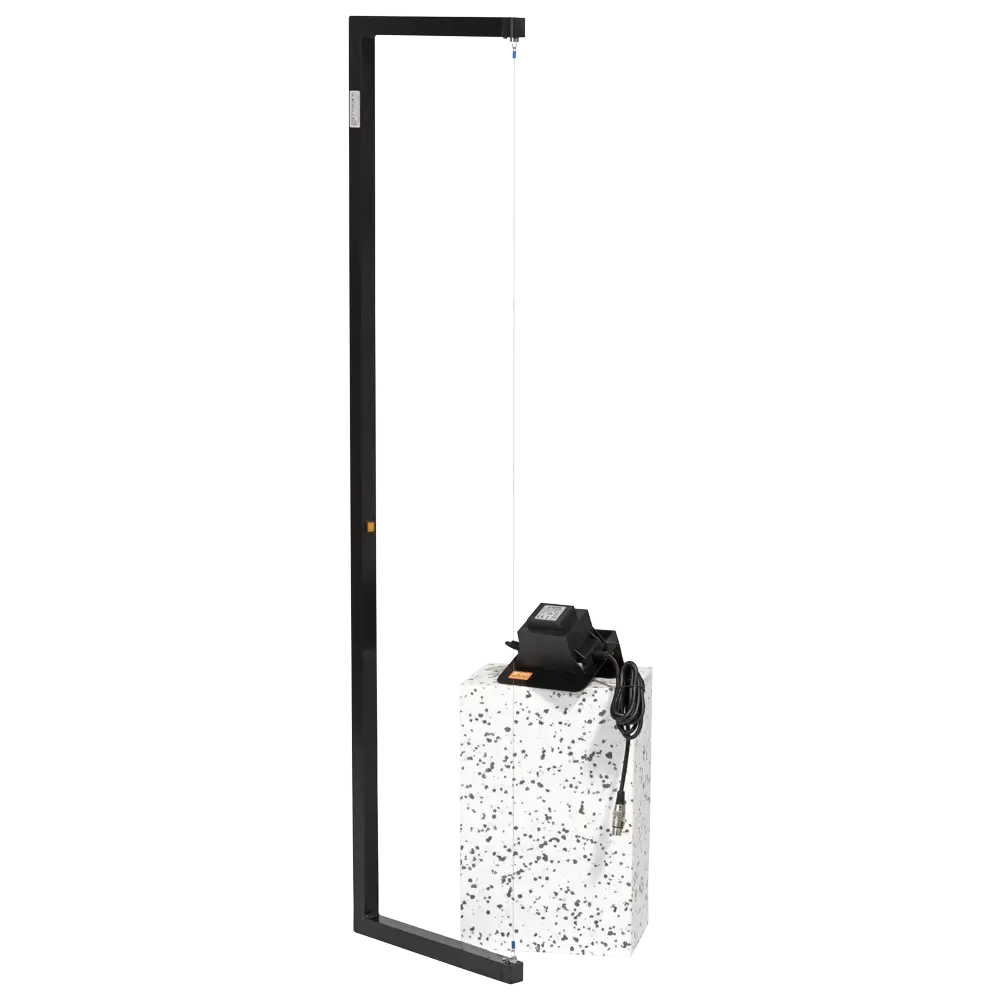

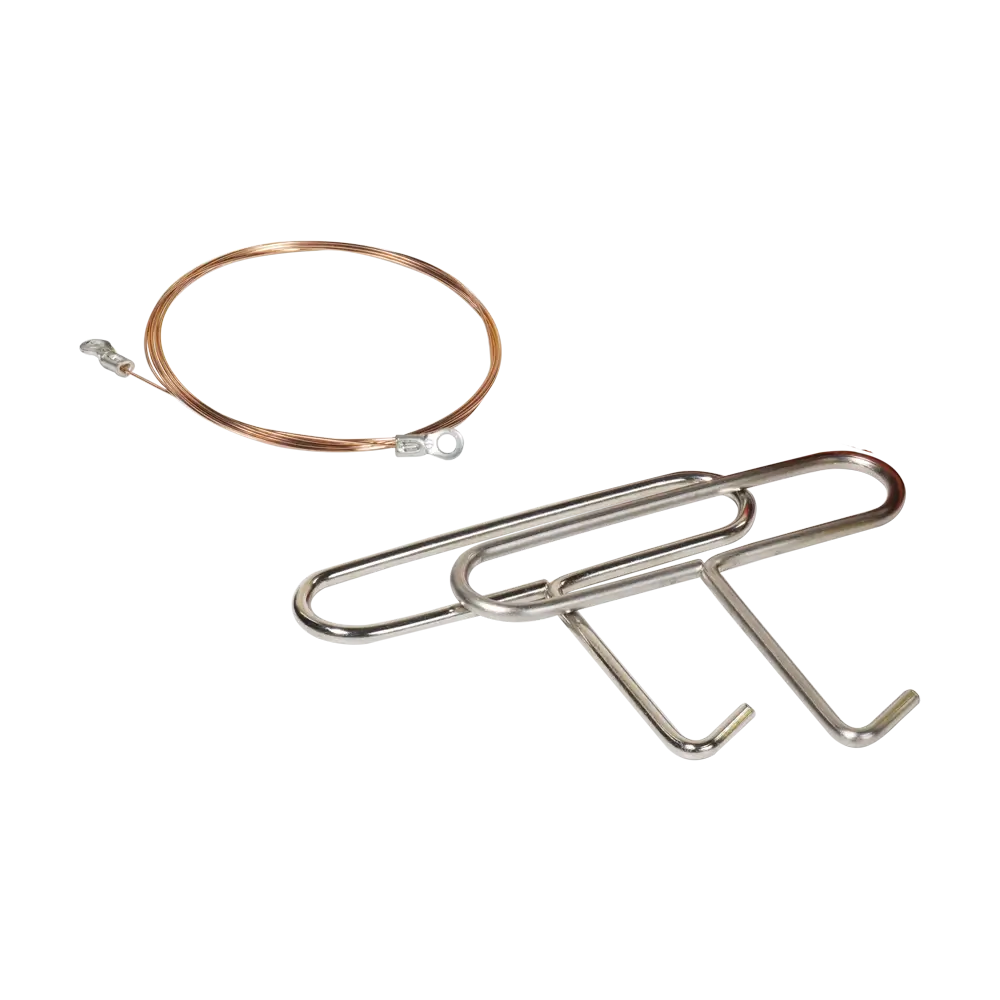

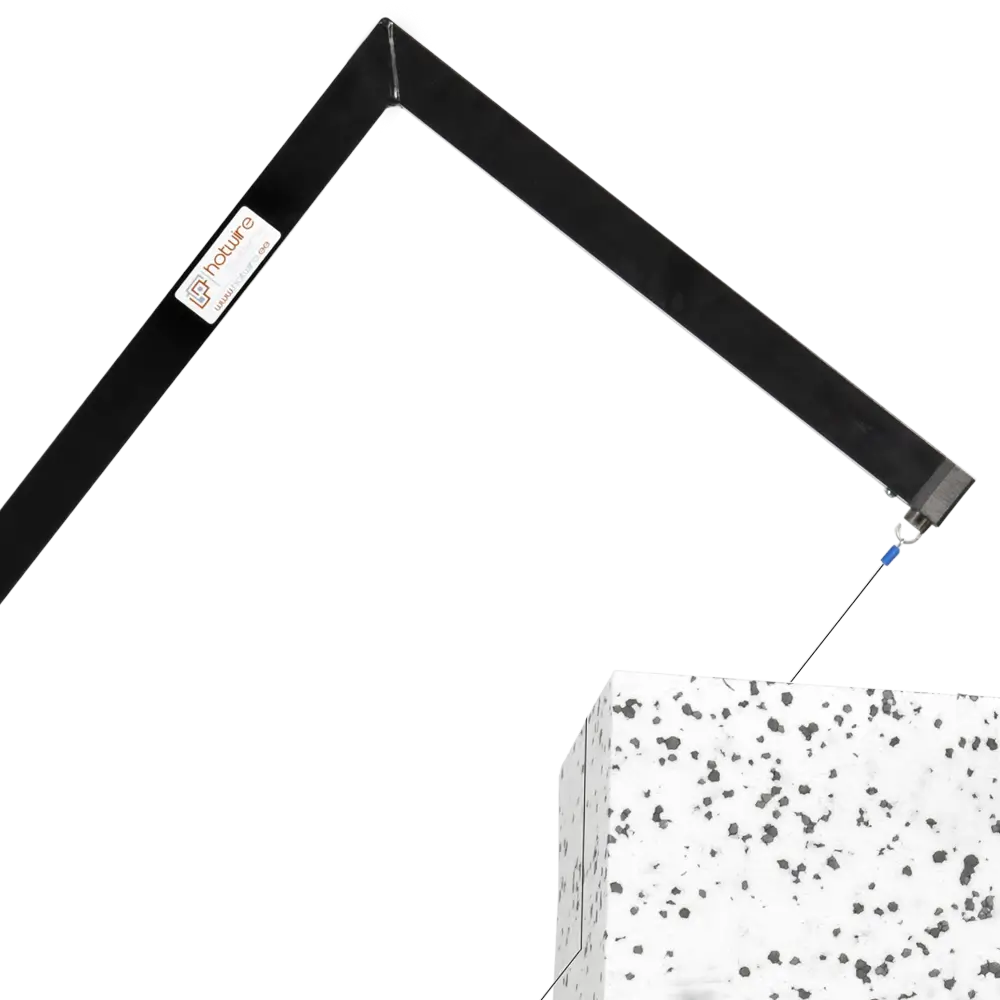

With foam cutter HWS polystyrene non-plasticized foam (EPS, XPS) boards can be cut to length, miter or “hands free” cuts. In addition, free hand cuts can be implemented with the manual strap (e.g. for the cutting out of window soffits or pipe breakthrough passages).
Attention: For despatch reasons, the transformer and the frame bracket are only part assembled. Using the accessory Allen key and screws supplied, this assembly is completed and ready for service in appox. 1 minute.

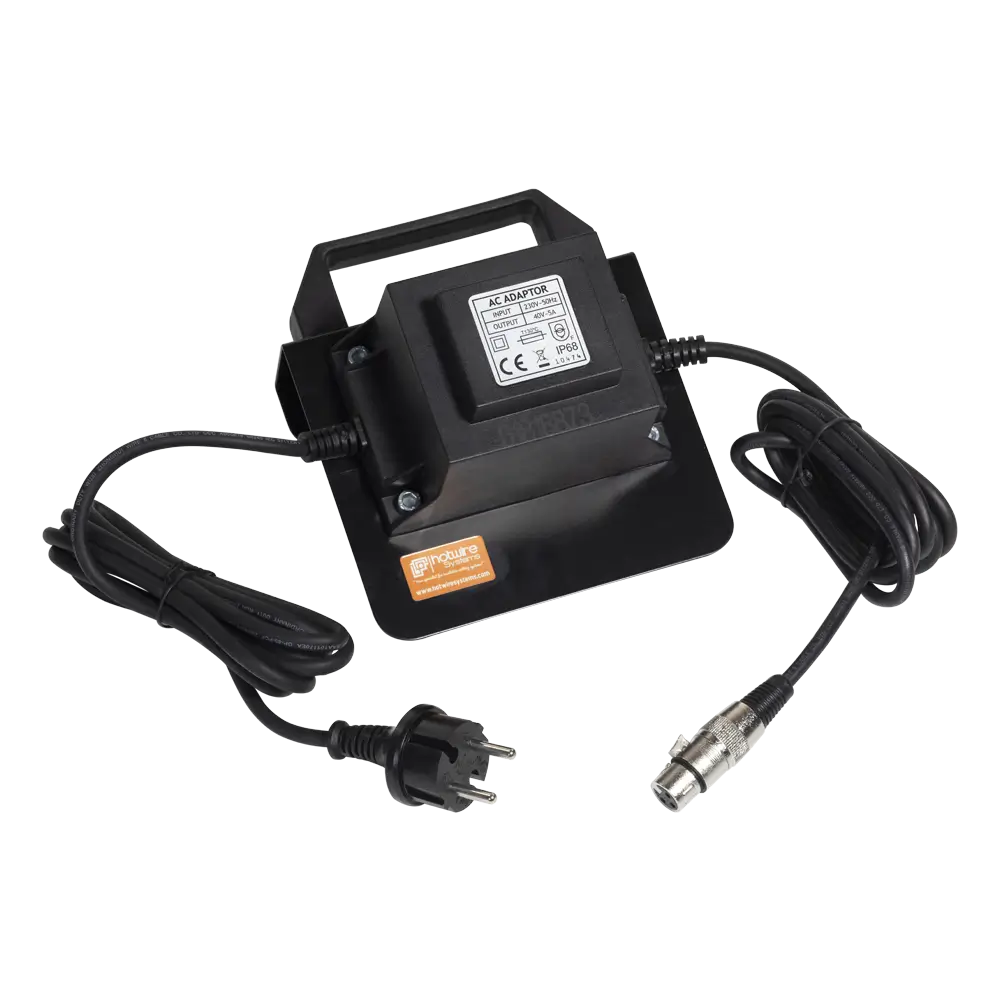

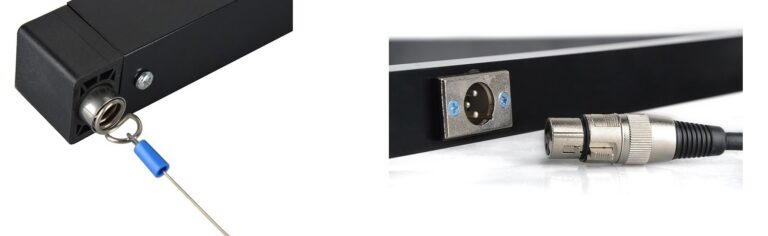

The powerful transformer easily assembled on the device with four screws. After electric connection of the transformer to the bow, using high-quality, splash-proof, XLR industrial plug connectors, Hot wire foam cutter HWS-Easy! is ready for action immediately. Protection class (IP) of transformer is 68. The transformer is available in two options:

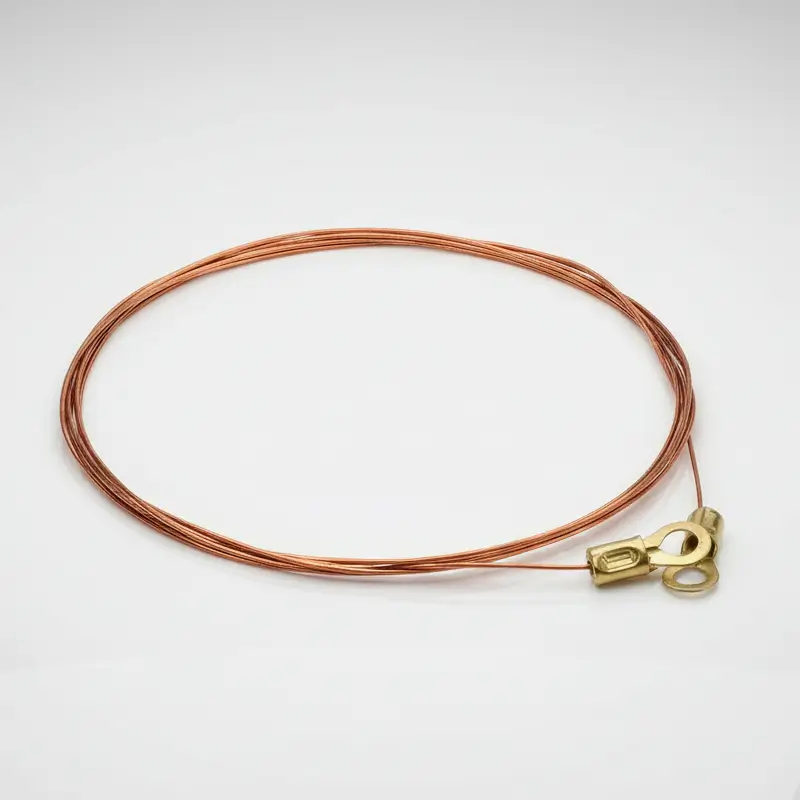

For Foam cutter HWS we use Nichrome – NiCr wire.We offer ready-made versions of the styrofoam cutting wire with two lugs on the ends for easy and quick installation on the foam cutting machine. Cutting Wire for Foam cutter HWS You can buy by the piece (1 pc) or in large amounts (1kit = 10pc). The cutting wire are always in stock and can be sent to the client immediately after the order confirmation.
Cutting length: |
1340 mm |
Cutting depth: |
max. 310 mm |
Transformer 230v: |
Pri: 230-volt/ Sec: 40V/200VA |
Transformer 110v: |
Pri: 110-volt/ Sec: 40V/200VA |
Weight: |
14,8 kg |
Support plate: |
Laminated wood glued together |
Bow: |
Painted aluminum profile with ball-bearing supported guide |
Art. #: |
HWS-10355 |
Extra Wire: |
HWS-10404 |
Scaffold bracket: |
HWS-10365 |
Stand base: |
HWS-10513 |
Status: |
In Stock |
Cutting length: | 1340 mm |
Cutting depth: | max. 310 mm |
Transformer 230v: | Pri: 230-volt/ Sec: 40V/200VA |
Transformer 110v: | Pri: 110-volt/ Sec: 40V/200VA |
Weight: | 14,8 kg |
Support plate: | Laminated wood glued together |
Bow: | Painted aluminum profile with ball-bearing supported guide |
Art. #: | HWS-10355 |
Extra Wire: | HWS-10404 |
Scaffold bracket: | HWS-10365 |
Stand base: | HWS-10513 |
Status: | In Stock |
